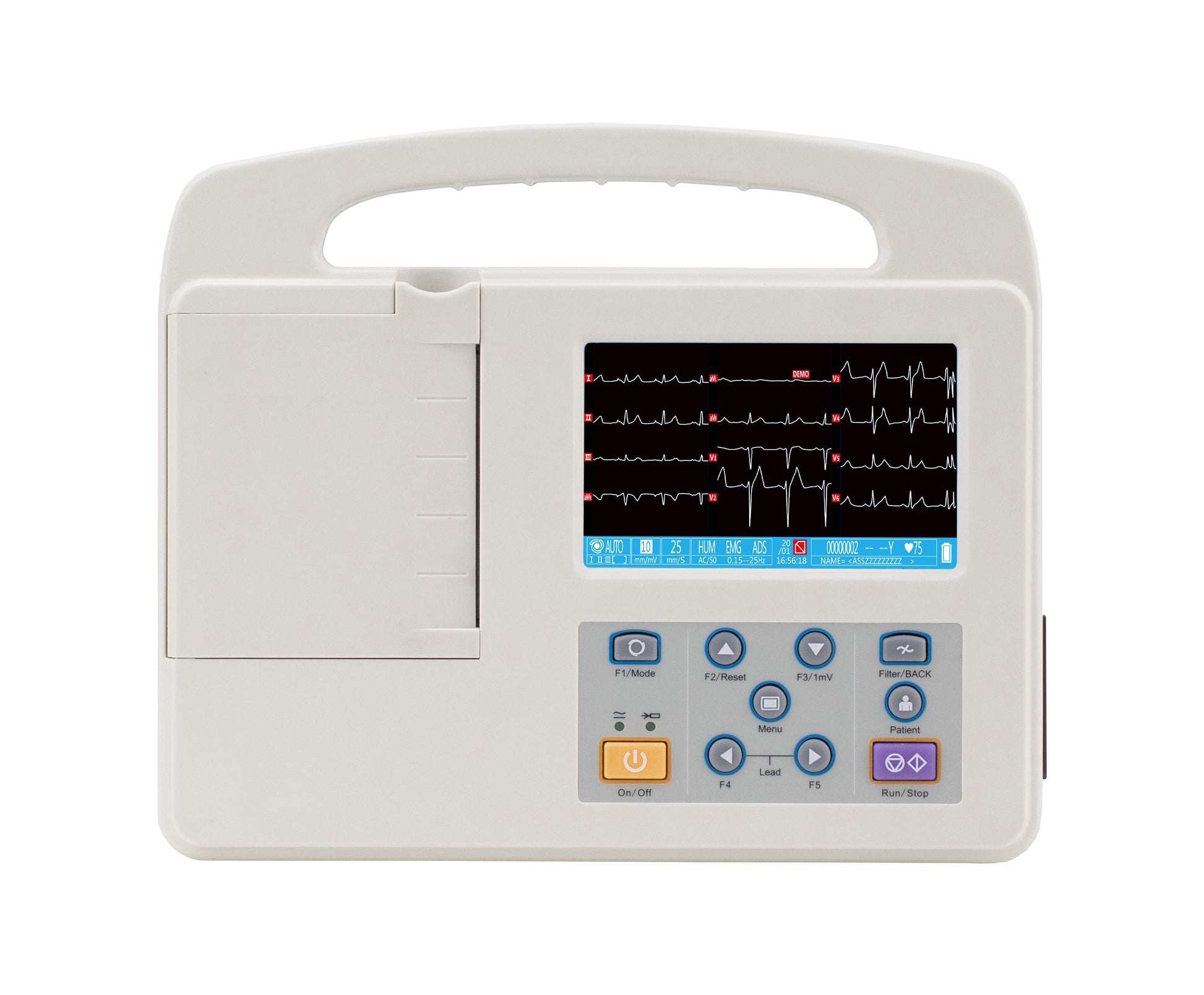

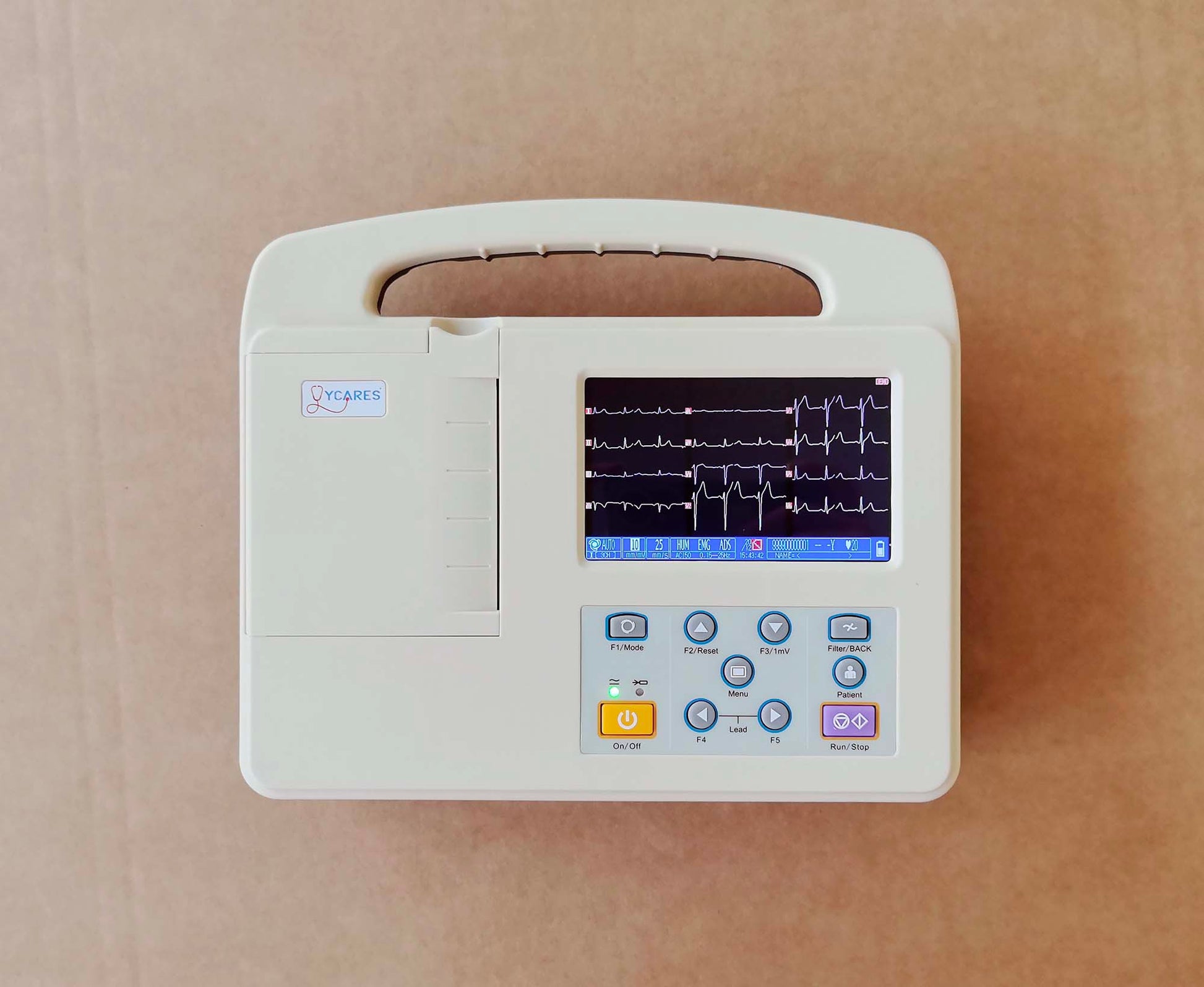

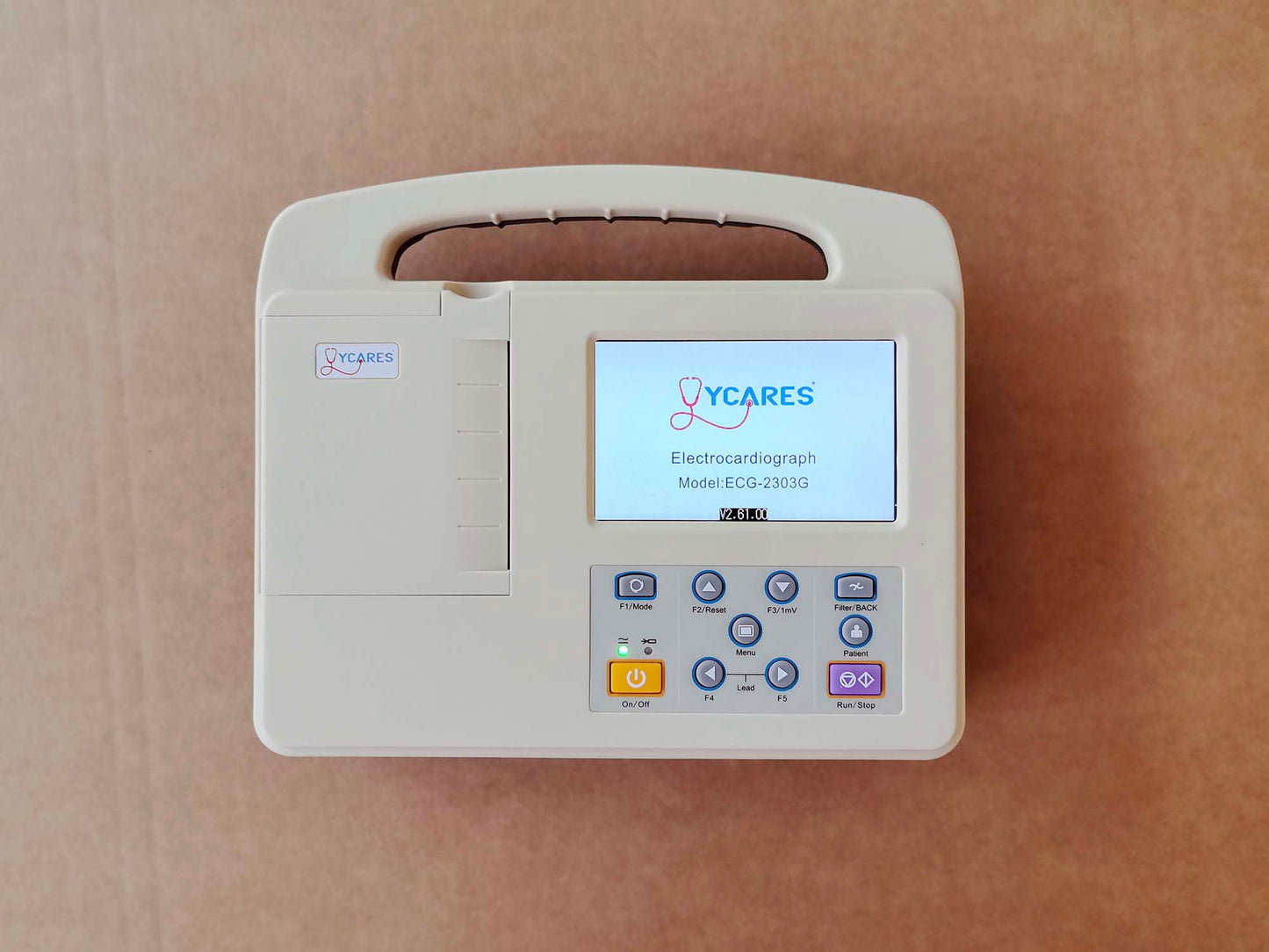

Physical Design
* Compact and ergonomic design, easy to carry and operate.
* Small size and light weight, very convenient for mobile diagnosis.
* Measurement: 260mmx217mmx58mm, 1.7kgs.
Sampling and Analysis
* High accuracy digital filter and auto baseline adjustment.
* 12 leads synchronously acquisition and record, sampling rate 32000Hz.
* Excellent automatic interpretation function.

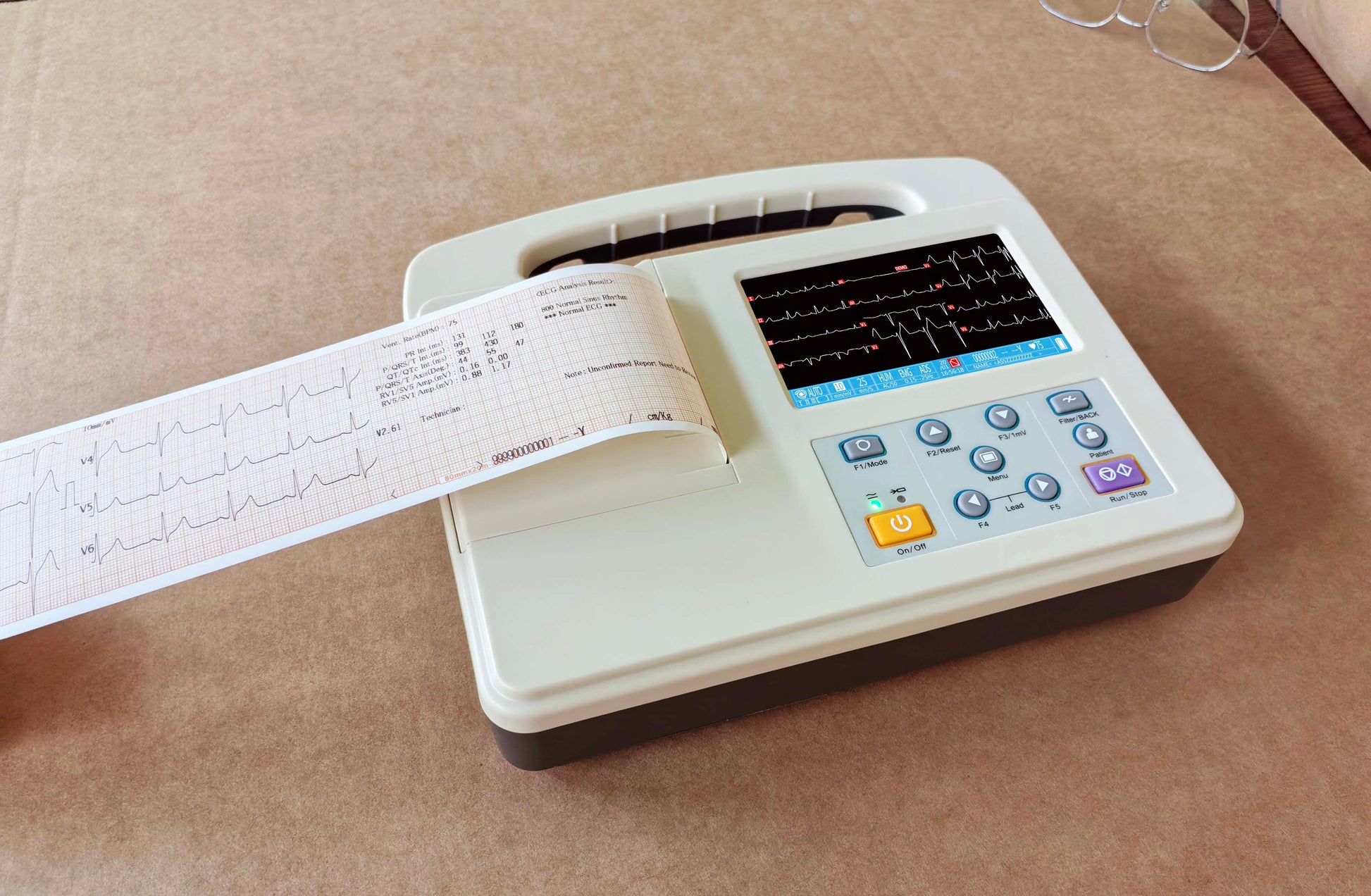

Recording
* Working Modes: Auto, Manual, R-R, Store and 1 minute rhythm lead record.
* 80mm in width, 3 channel recording. Recording format: 1ch+, 3ch, 3ch+.
* High resolution thermal printing.
* Standard thermal paper size: 80mm x 20m, roll paper.
Configuration

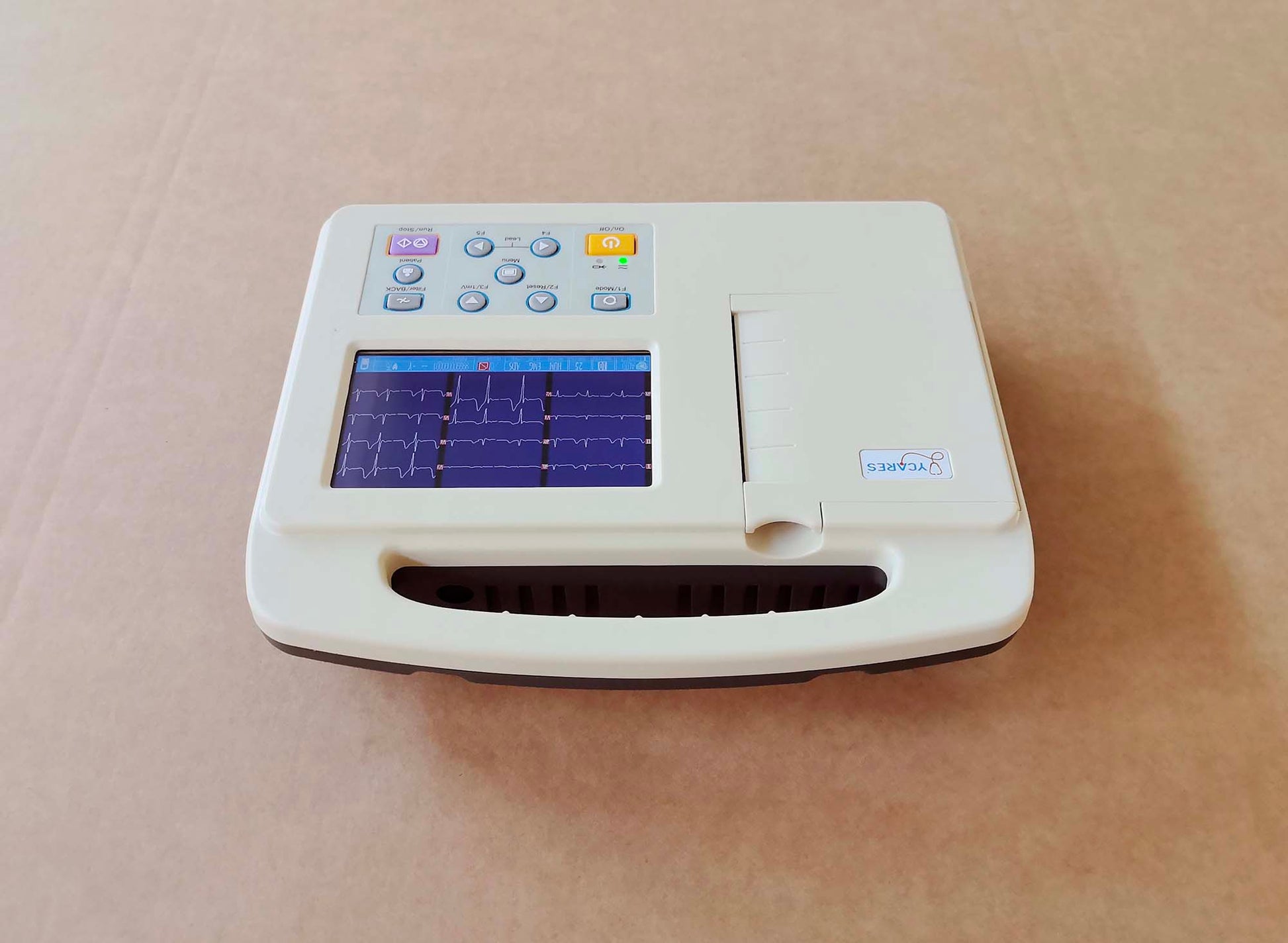

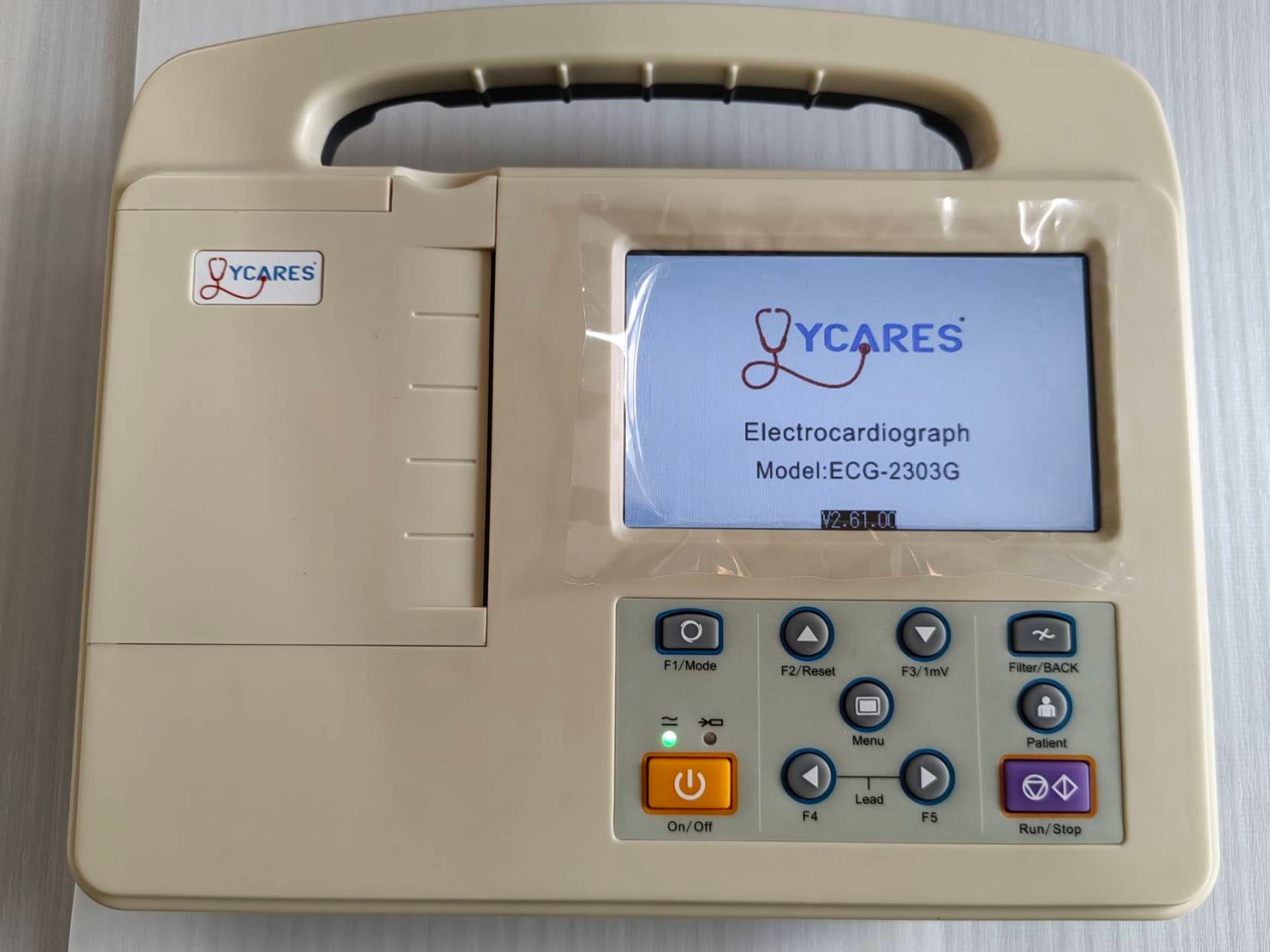

* 800x480 graphic, 5 inch color LCD to display detailed ECG information.
* Soft silicone keypad, available to input detailed patient information.
* 250 patient cases storage and reply ( internal SD card is optional ).

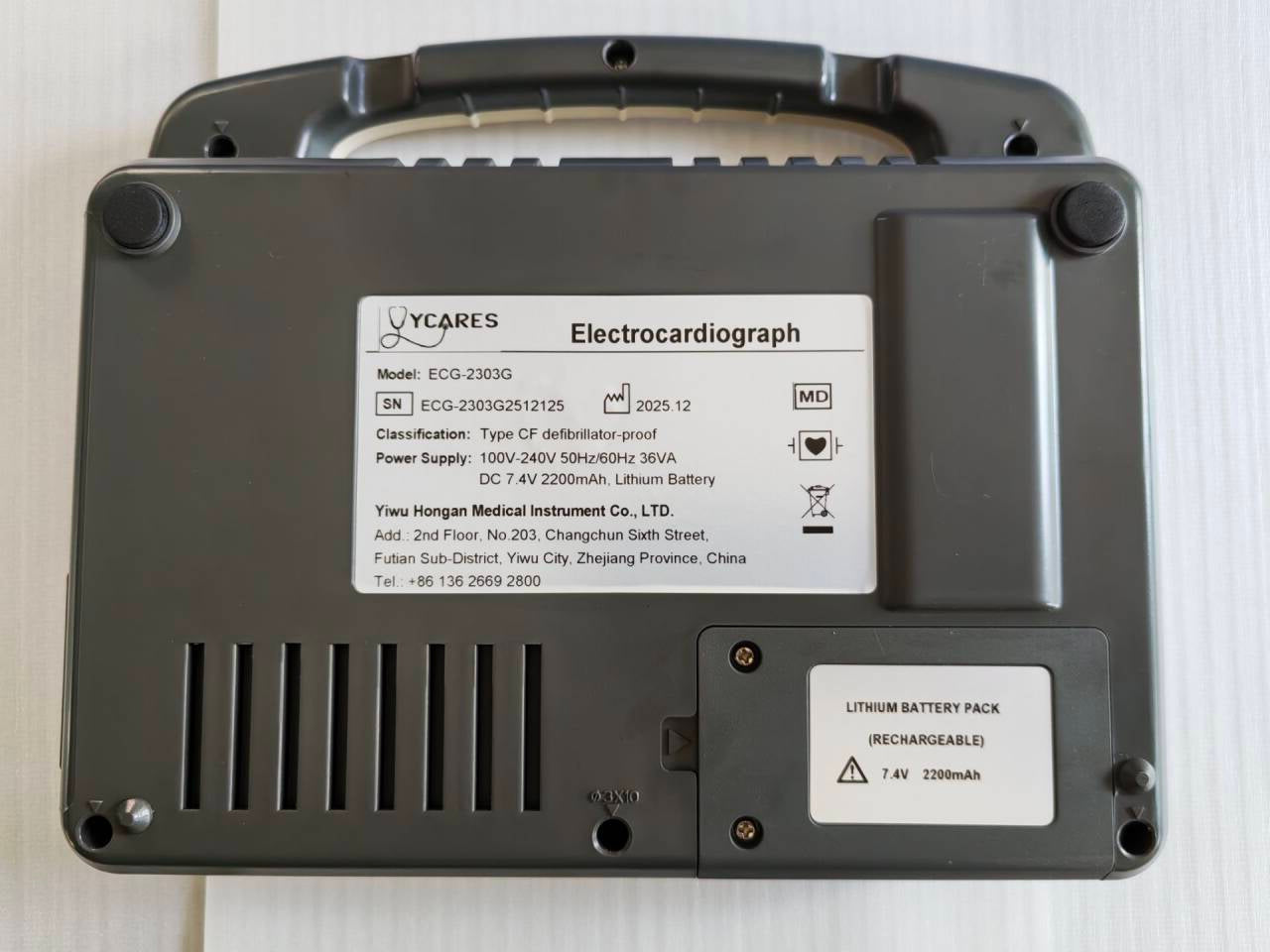

* Rechargeable Li-ion battery support continuously working for about 9 hours.
* Adapt to 110-230V, 50/60Hz power supply.

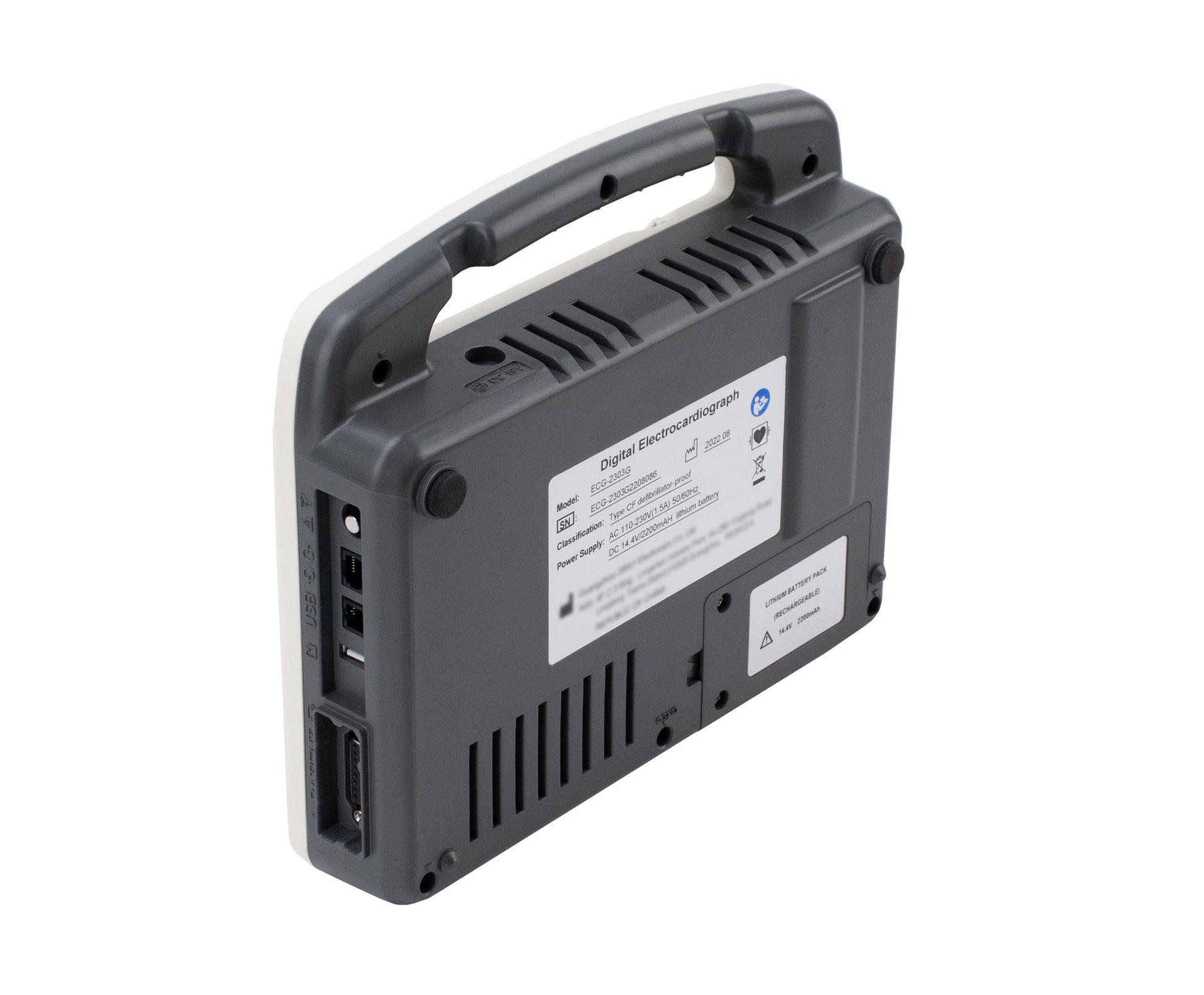

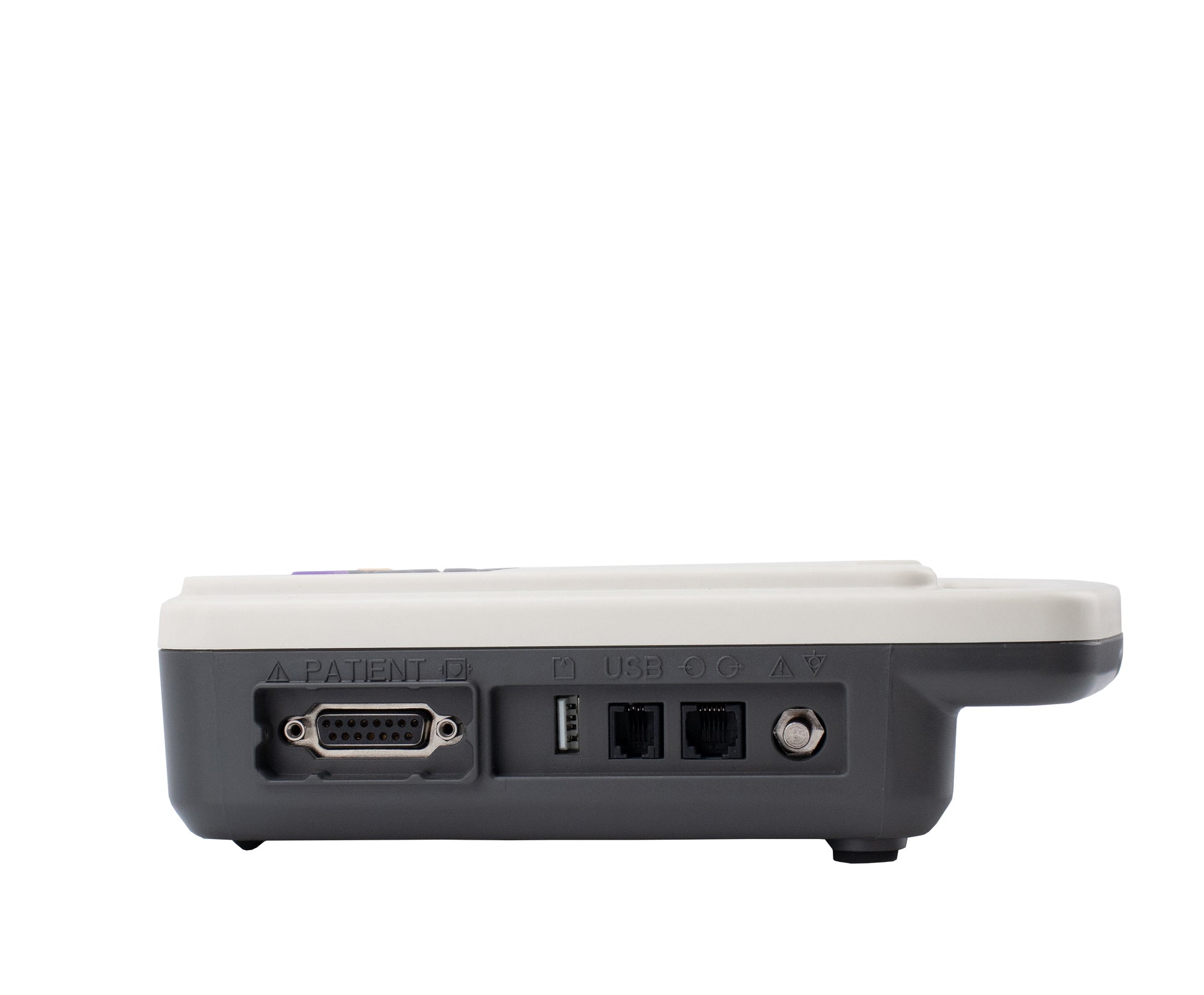

* USB and UART communication ports.
Optional Functions
* With PC ECG management software to manage ECG data on computer.
* Connecting to USB flash disk to store ECG data in USB.
* Connecting to bar code-scanner to scan patient ID.
