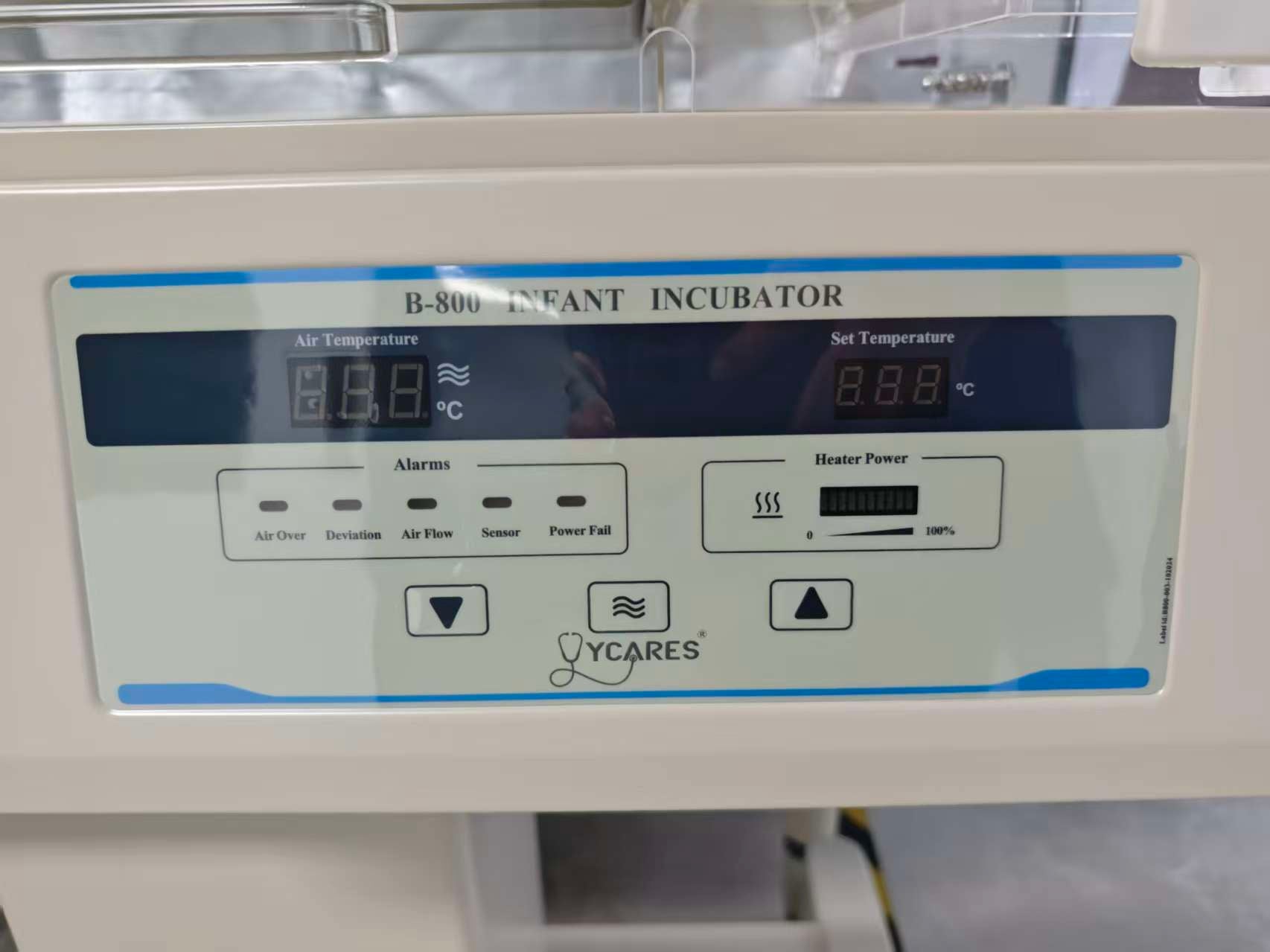

● Servo Control Mode: air mode; ● Instant ParameterDisplaying: set temp, air temp, heat power rate; ● Audible & Visual Alarms:power failure, sensor failure, higher/lower temp, air temperature override, fan failure; ● Power failure reset memory and self-test function; ● Hood with dual slope: 4hand-ports; ● Optional skin temperature display; ● Optional humidity display. Specifications of hood Mattress to Hood: 450 mm Observation side of hood: Two incline Operate port: 4 (2 Iris ports) Tubing grommets: 2 Front access panel: 826×310 mm Mattress Tray Size: 630×360 mm Technical Specifications Power requirement ≤400VA Temperature control mode: Air servo control Air Temp Control Range: 20.0℃-37.0℃ Temperature fluctuation: ≤0.5℃ Mattress temperature uniformity: ≤0.8℃ Temperature rise time: ≤45 min Noise level within hood environment: ≤55dB Alarms Power failure alarm Fan failure alarm Sensor failure alarm High air temperature alarm: +3.0℃ Low air temperature alarm: -3.0℃ Over air temperature alarm: ≤38.0℃ Operational condition Environment temperature: +20℃-+30℃ Environment relative humidity: 30%℃-75% Environment air velocity of flow: <0.3m/s Others Mattress tray Max. load 5kg Transfusion pole Max. load 2kg
