HONGAN MEDICAL

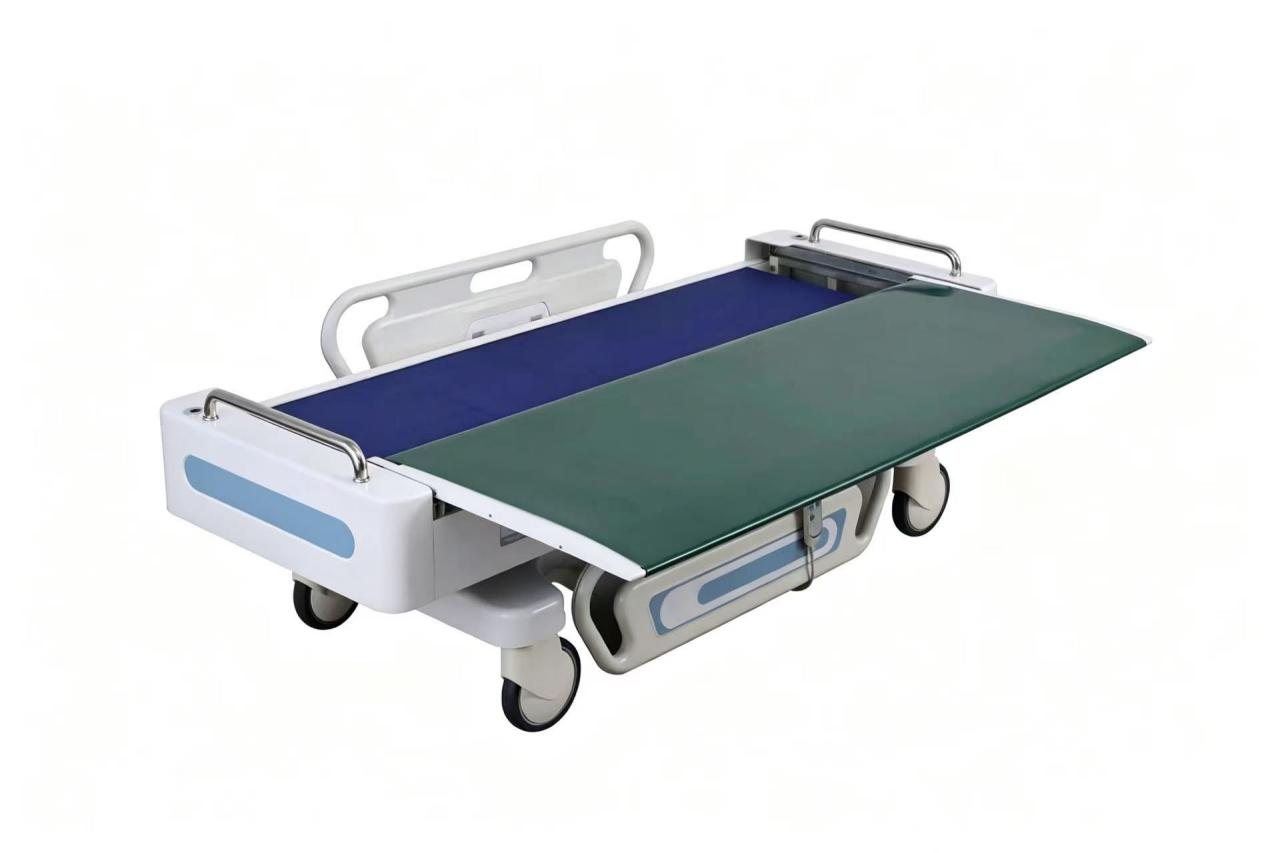

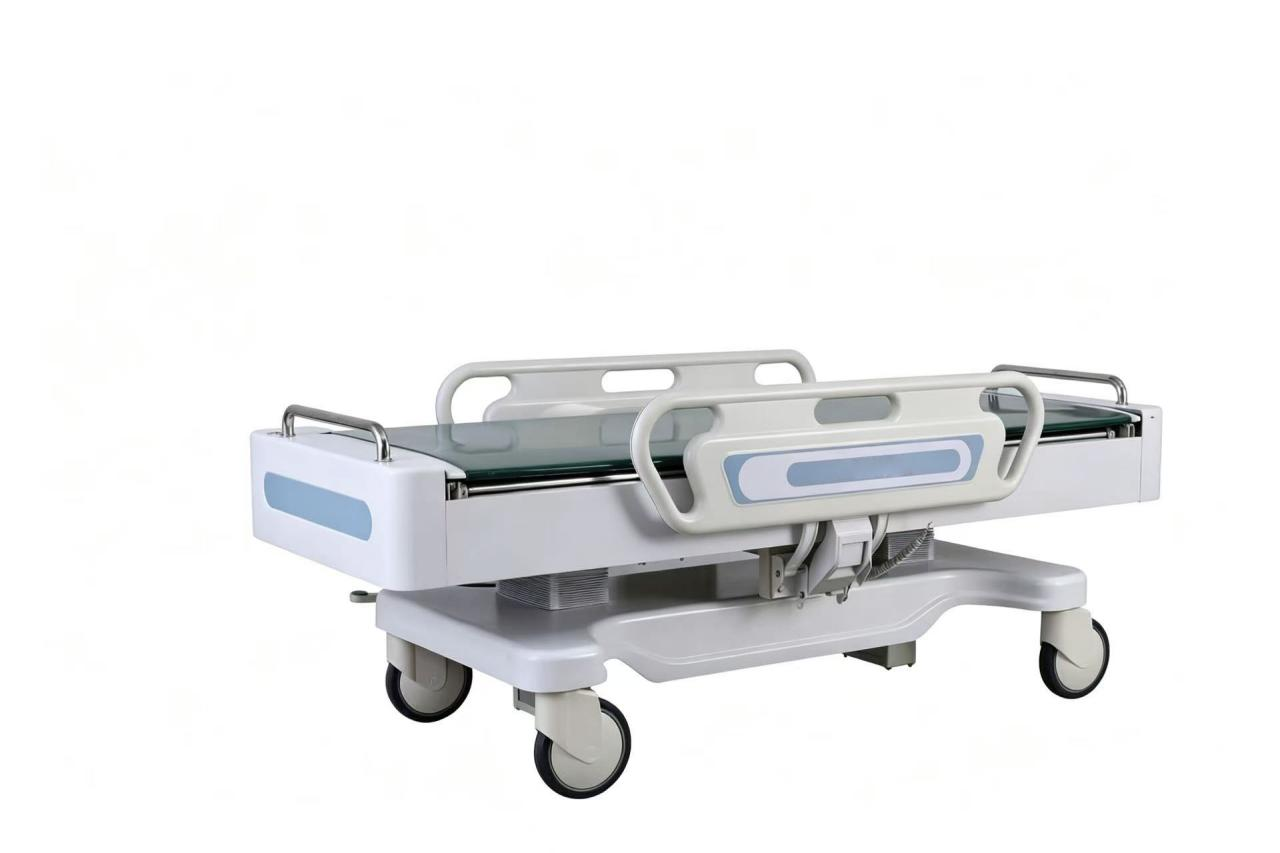

Electric Patient Transfer Trolley
Electric Patient Transfer Trolley
Regular price
¥0.00 CNY
Regular price
Sale price
¥0.00 CNY
Unit price
/
per
Couldn't load pickup availability
Dimensions:
Overall length: 2020 mm
Overall width: 850 mm
Adjustable height range: 600–870 mm
Bed surface length: 180 mm, width: 650 mm
Transfer board extension width: 480 mm (tolerance ±20 mm)
Net weight: 165 kg, Gross weight: 235 kg (tolerance ±2 kg)
Frame construction:
Main frame made of high-quality steel tube, welded for firmness and deformation resistance, with electrostatic spray coating
(antibacterial paint, durable and chemical-resistant).
Side rails: 40×60 mm and 30×60 mm square tubes, thickness 1.2 mm.
Main connectors: 3 mm cold-rolled steel plate, stamp-formed.
Bed surface: thickened high- quality stainless steel plate, load capacity ≥200 kg.
Side rails: ABS hydraulic folding side rails with hydraulic support and soft descent cushioning.
Bed outer frame: High- density polyethylene (HDPE) resin, integrally blow- molded.
Drive system: Two drive shafts on the bed surface, surrounded by a durable, wear-resistant conveyor belt that can rotateforward and reverse. Stainless steel push handles installed at both ends for easy maneuvering.
Power supply: Built-in high- capacity lithium battery; 6- hour charge enables approximately 150 patient transfers.
Motor: Silent, high- power motor with high performance and low noise; stable output, long service life.
Casters: Equipped with 8-inch medical- grade silent universal casters – resistant to acids, alkalis, corrosion, and tangling,
non-rusting. Central-lock brake pedal provides stable and reliable braking, smooth and quiet rolling, flexible movement,
anti-jolt design, and firm braking.
Standard accessory – IV pole (1 piece):
(1) Four standard hooks, retractable/foldable.
(2) Material: stainless steel tube frame with resin upper/lower locking components.
(3) Damping device: allows the IV pole to descend slowly; height adjustable via rotating the upper/lower locking components.
III. Product Configuration
Silent casters, side rails, IV pole, controller, battery, motor, complete frame, user manual, warranty card.
IV. Product Packaging
Wooden crate packaging.
