10.4 inch Colourful TFT+high-luminance LCD Display
Working modes: For the closed system, half closed system and half open system
Application: Adult, Child
Low gas supply alarm: when O₂ supply pressure is over low, the machine will arise ＞7 seconds audible alarm.
High pressure limitation: When airway pressure is higher than pre-set figure, the machine will automatically start protection function. The airway pressure will stop increasing (not increase any more), to keep patient safe.
Low pressure cut off: when O₂ gas supply pressure is lower than 0.1 MPa, the machine will automatically put off N₂O supply.
When power supply fails, audible and visual alarms will arise. The machine will continuously work by battery.

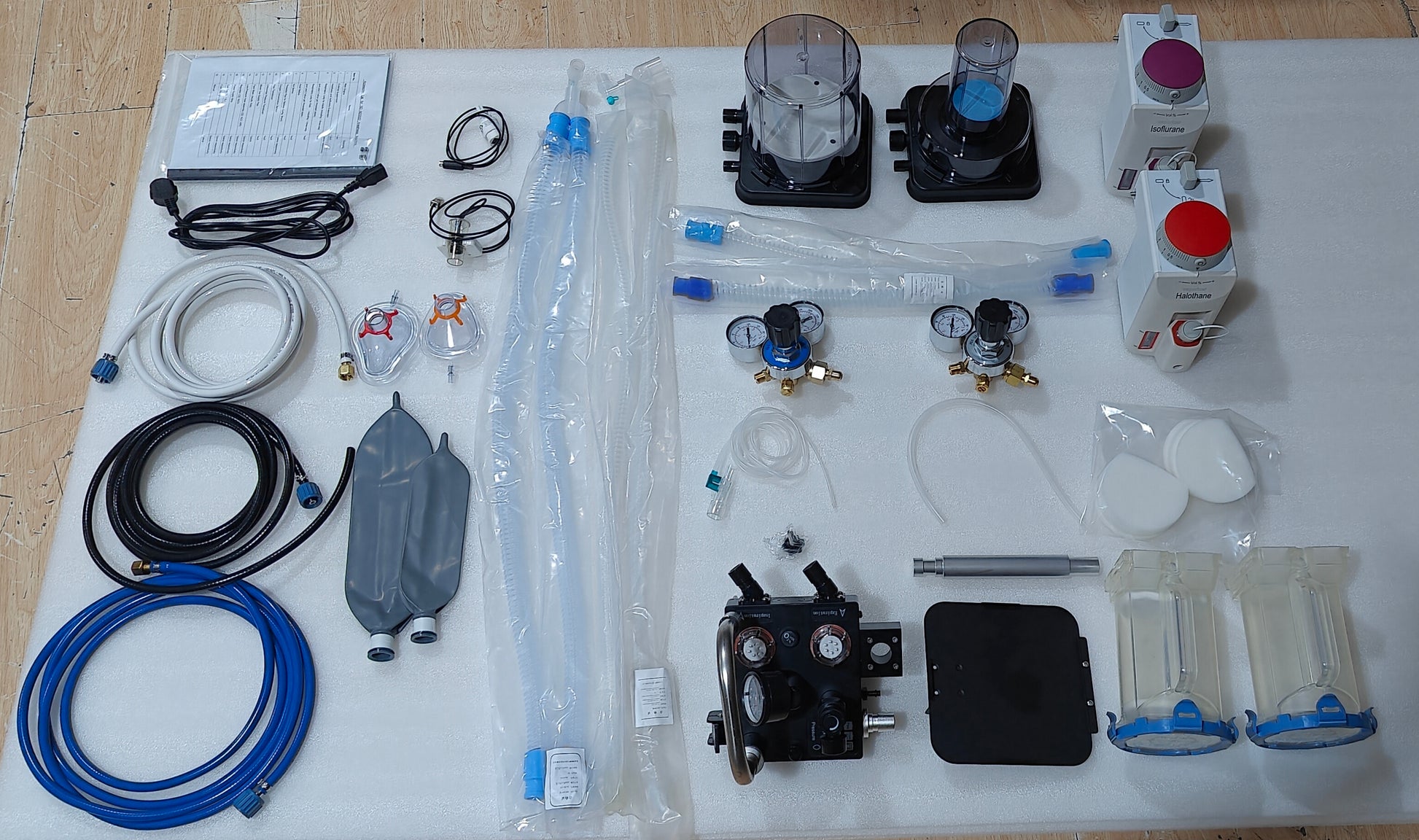

Respiratory loops are available.
O₂ Flush:25L/min~75L/min
Gas Supply: O₂:0.28~0.6MPa N₂O:0.28~0.6MPa Air:0.28~0.6MPa
Power supply: AC220V, 50 Hz. Built-in UPS power supply for backup.

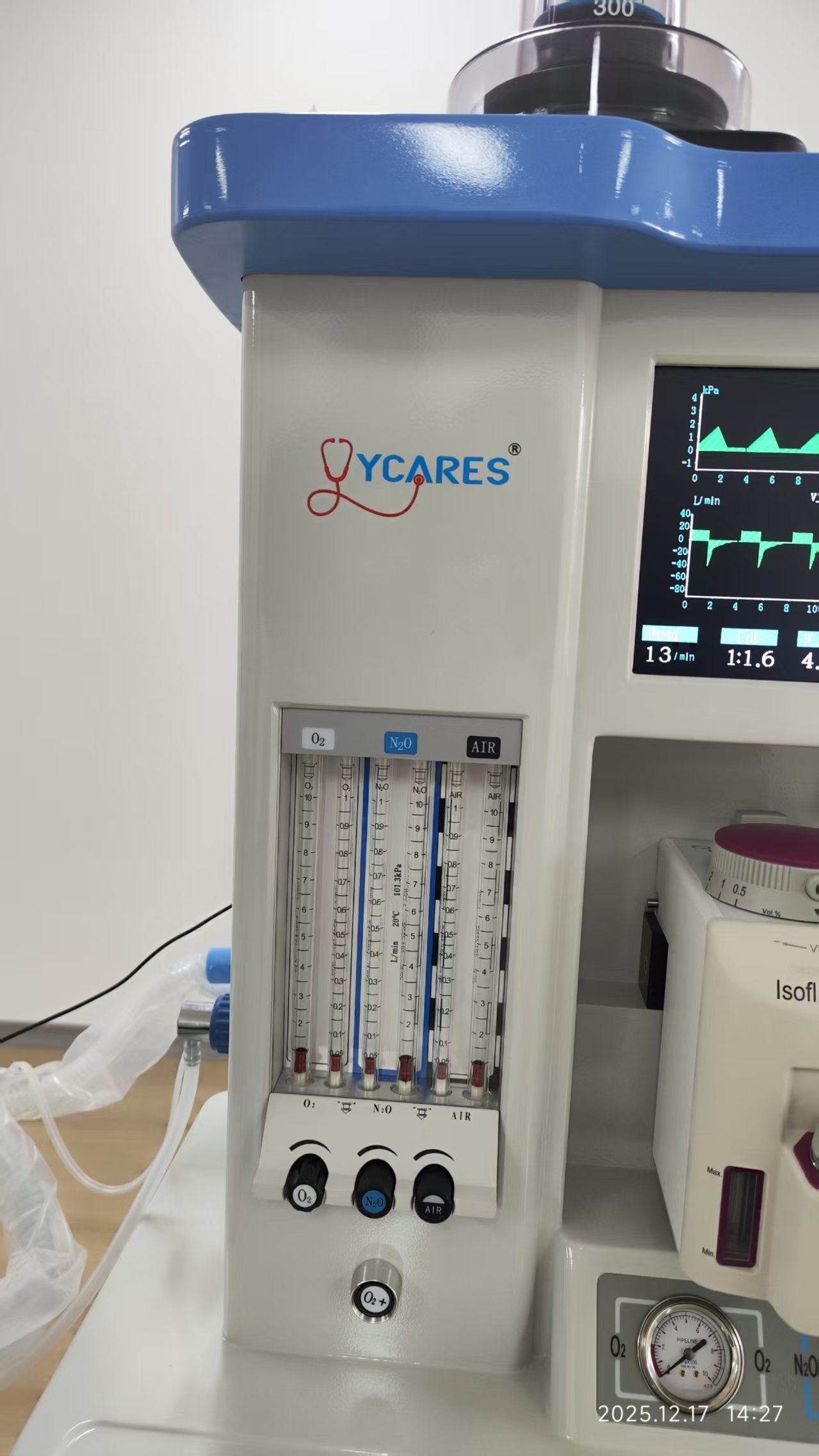

Flowmeter:
O₂ / N₂O / Air six tubes Flowmeter ( 0～1L/min 1～10L/min )
O₂ / N₂O linkage system, make sure the O₂ concentration ＞25%
